BELL FURNACES

Experience efficiency and performance with our Bell Furnaces

NUTEC Bickley Bell Furnaces

Bell furnaces are commonly used for intermittent or batch processes. Their principal use is to perform heat treatment, although they can also be used for sintering or drying at low temperature.

The load/product is heated inside a mobile cover or dome, which can be removed using a traveling hoist. Alternatively, we can design an automatic lifting mechanism in accordance with customer requirements.

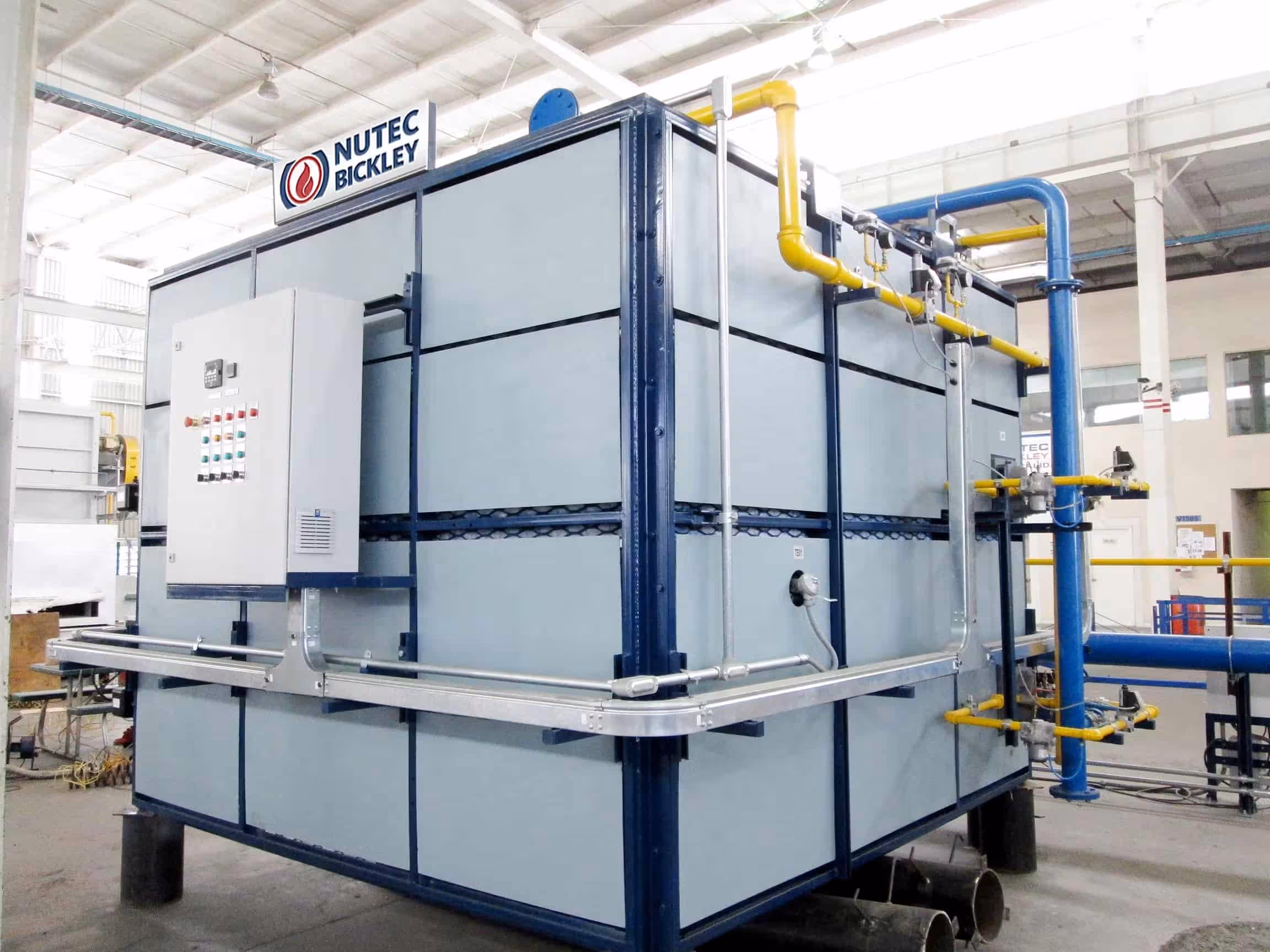

Bell Furnace for Heat Treating Steel Wire

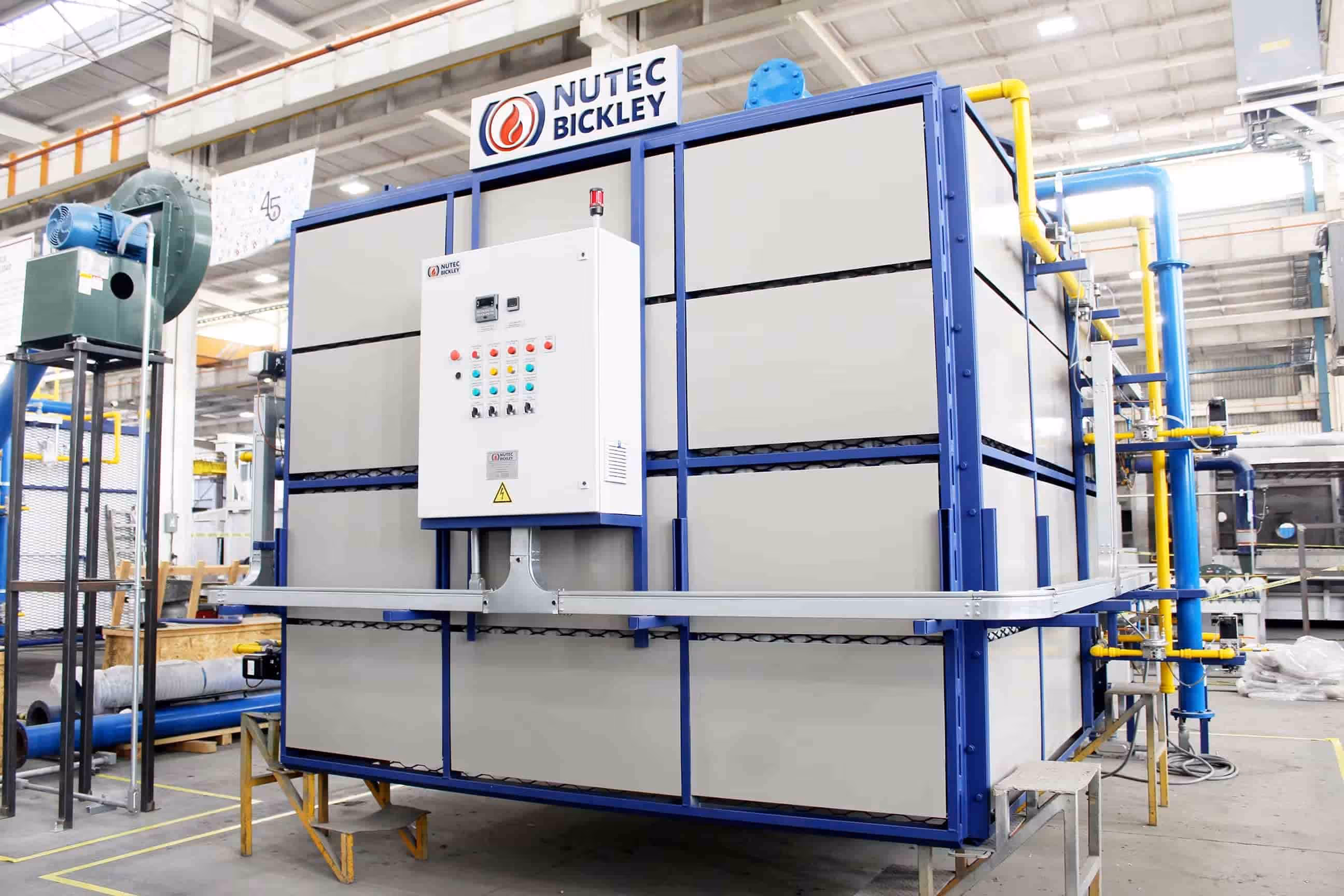

Bell Furnace for Heat Treating Steel Wire

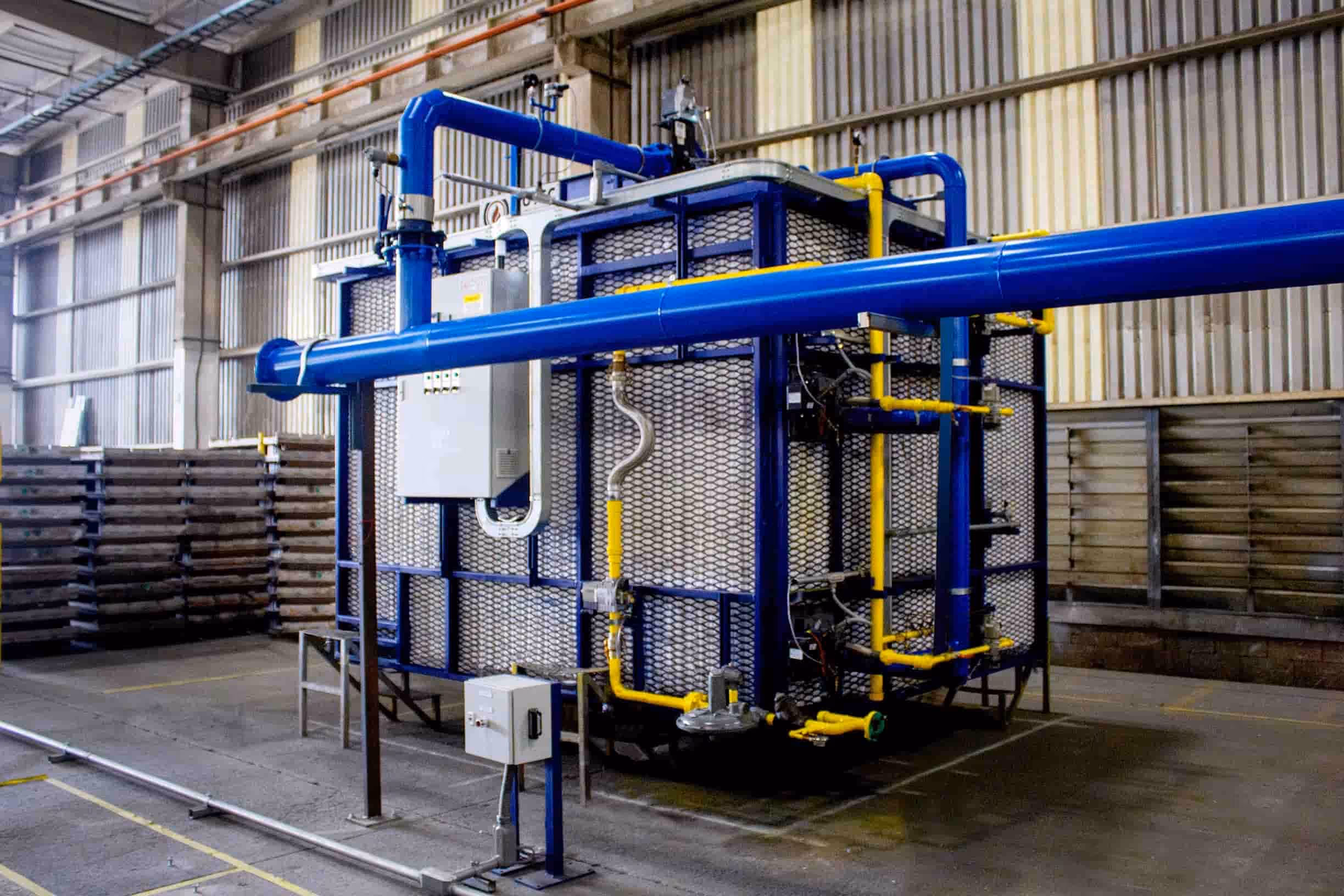

Bell Furnace for Heat Treating Steel Wire

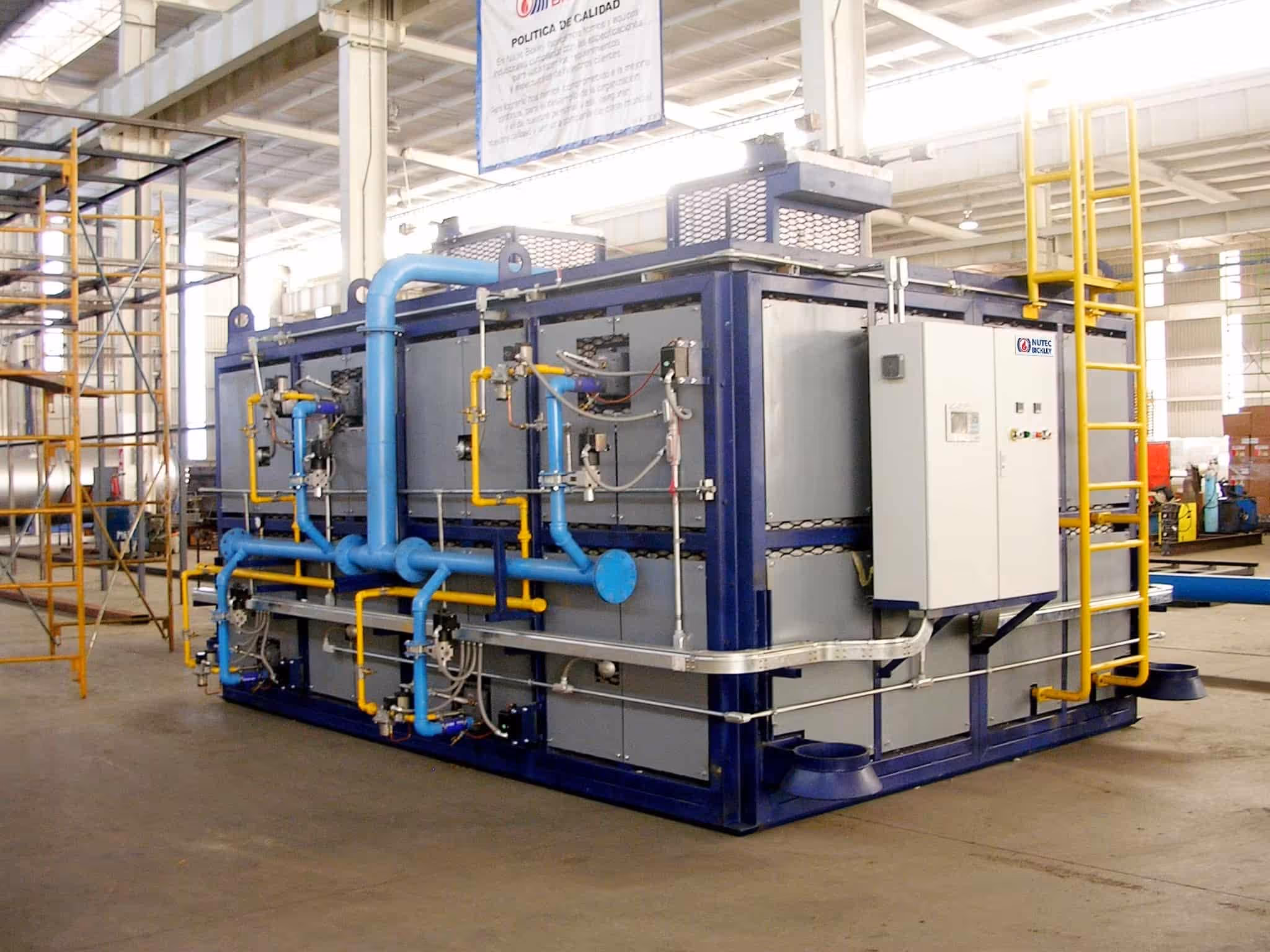

Bell Furnace for Heat Treating Steel Wire

Bell Furnace for Heat Treating Steel Wire

Bell Furnace for Heat Treating Steel Wire

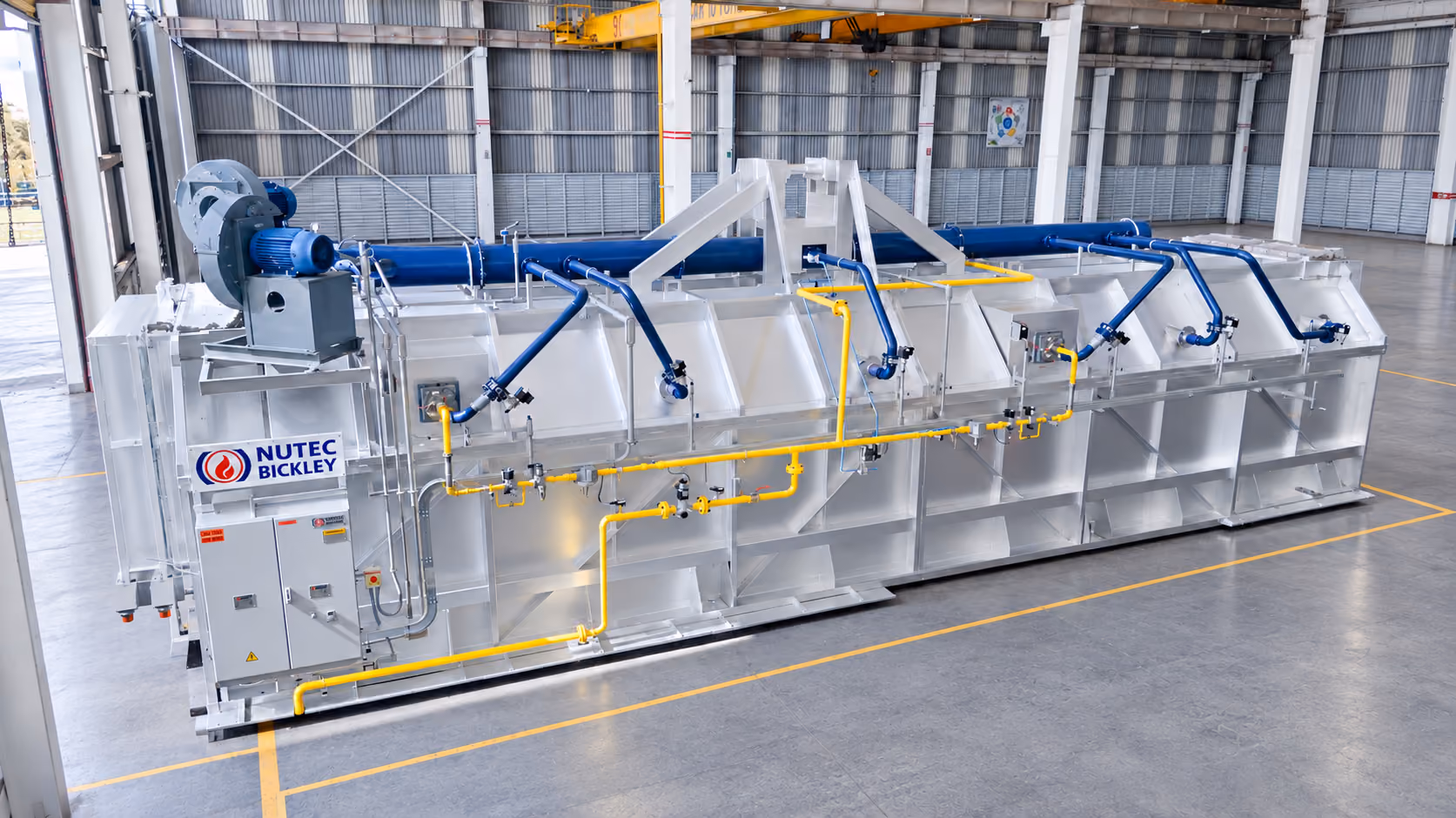

Bell Furnace for Heat Treating Castings

Bell Furnace for Heat Treating Castings

General Specifications
Dimensions
35 ft³ to 3,500 ft³ (1 m³ - 100 m³)
Temperature
Up to 2,460°F (1,350°C)
Standards
AMS, CQI-9, ASTM, ASME, API
Power Source
Natural and propane gas. Electrical configurations available
Key Differentiators
Versatility: Different lifting methods available, according to customer requirements and design.
Great Value: Offers an economical method of heat treatment when used with multiple bases.
Reliability: Excellent positive seal between furnace and base; furnace can be used with multiple bases.
Simplicity: Does not require any mechanism (such as a door or car) allied to its design, ensuring a positive seal on the floor/base.
Optimal Productivity: Normally, it can change position or base, remaining operational for longer. While one load is processed, the other will be cooling or loading/unloading, optimizing furnace use.
Low Maintenance: Maintenance is limited to the combustion and control equipment by not having mechanisms or moving parts in the furnace.

Technology Offered

SCADA

SCADA

With our SCADA systems, kilns operators are able to have complete control of their firing process, enhancing efficiency and productivity.

Learn more about SCADA
IMPS

IMPS™

NUTEC Bickley’s unique firing and cooling pulsing control system provides a perfect solution in relation to temperature uniformity as well as fuel efficiency.

Learn more about IMPS™
Industries we serve

Ferrous Foundries

Related Processes
Tempering

Related Services

Spare Parts

NUTEC Bickley provides the best Spare Parts brands for industrial furnaces, kilns and other equipment, with the highest quality components in the combustion and control areas.

Learn more about our Spare Parts catalog
Refacciones

Maintenance Policies

NUTEC Bickley provides Maintenance Policies for industrial furnaces all over the world. Our commitment is to keep your combustion systems in the best possible operating condition with periodic reviews and a process of continuous improvement.

Learn more about our Maintenance Policies

Related Resources

Frequently asked questions about our bell furnaces

How does a bell furnace work?

Bell furnaces are commonly used for intermittent or batch processes. Their principal use is to perform heat treatment, although they can also be used for sintering or drying at low temperature.

The load/product is heated inside a mobile cover or dome, which can be removed using a traveling hoist.
